Compressed Air Filter With Floating Drain

Name: Compressed Air Filter With Floating Drain
Brand: Yuka
Price: 1 USD

Model No. : YF100

Brand : YUKA

Origin : China

HS Code : 8421399090

Clapboard : Without Clapboard

Filter Number : 1

Medium Material : Fiberglass

Type : Cartridge Filter

Material : Aluminum Alloy

Housing Serve Lige : 15 Years

Filtration Performance : From 5 μm To 0.01μm

Maxi. Operate Pressure : 1.0mpa

Operate Temperature : 1.5~80ºc

Resistance Corrosion : Inside And Outside

Parts : Dp Indicator, Auto Drain, Sight Glass

Color : Red

Transport Package : Brown Inner Box & Cardboard

Filtration Grade : Medium Filter

Efficiency : F9

Connection : Rc2-1/2"

Specification : Dimension: 174 X 142x 558mm

Flow Rate : 13.0 M³/Min

Element Top Cap Design : Colorful To Distinguish

Diversion Fin Design On Element Top Cap : Less Pressure Loss

Element Top Cap : Pa+Gf Material

Seal Ring : Fluororubber

Activated Carbon Element Serve Life : 2000~3000 Hours

Place of Origin : China

Brand Name : Yuka

Price : Negotiable

Packaging Details : Box Package

Delivery Time : 3-7working days

Payment Terms : L/C,T/T

MOQ : 50pcs

Supply Ability : 300,000pcs/month

Contact Now

Product Description

Feature & Benefit
15 Year spanlife: Aluminum Alloy materia under working condition from temperature 1.5ºC~80ºC.Maxi. Pressure is 1.0Mpa.

6000~8000 hours serve life for Filter Element,filtering performance up to 99.99%

Integrated die-casting filter up to 4 inch, flow rate up to 48m³/min.

Low Pressure Drop: Top cap of filter element with diversion fins, which will let the air come inside the filter more smooth.

Product are test with the international advanced testing equipment based on standard ISO12500, Which is equivalent to the standard ISO8573.1-2010 quality standard, and provide filter performance test report.

Filtration Grade	PF	AO	AA	AX	ACS	AR	AAR
Size of solid particles(ISO12500-3)	5μm	1μm	0.01μm	0.01μm	-	1μm	0.01μm
Filtration performance of solid particles(ISO12500-3)	-	99.999+%	99.999+%	99.999+%	99.999+%	99.999+%	99.999+%
Filtration performance of oil(ISO12500-1)	50%	80+%	99.9+%	99.99+%	-	-	-
Residual oil content(ISO12500-1)	5mg/m³	0.6mg/m³	<0.01mg/m³	<0.001mg/m³	<0.004mg/m³	-	-

7 Grades Filter Element: PF/AO/AA/AX/ACS/AR/AAR

PF	AO	AA	AX	ACS	AR	AAR
As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible	High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21ºC),1ppm(w).	High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC),0.01ppm(w)	Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC),0.001ppm(w)	Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21ºC),0.003ppm(w)	Dust particles whose diameter more than 1μm can be removed	Dust particles whose diameter more than 0.01μm can be removed

Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g).

For application in other working pressure, please refer to the correction factors.

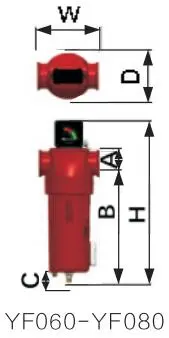

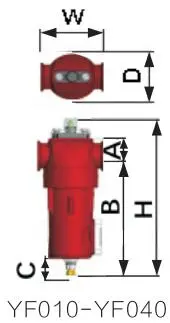

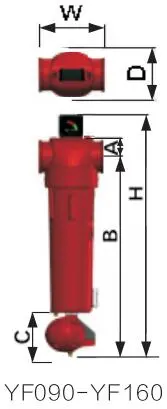

Model	Pipe size	Flow rates			Dimension (mm)
Model	Pipe size	L/S	m³/min	scfm	W(Width)	D(Depth)	H(Height)	A	B	C(clearance for housing)
YF010	RC1/2"	16.7	1.0	35.3	96	79	261	29	198	118
YF020	RC3/4"	25.0	1.5	53.0	96	79	261	29	198	118
YF030	RC3/4"	30.0	1.8	63.6	96	79	295	29	233	153
YF040	RC1"	33.3	2.0	71.0	96	79	295	29	233	153
YF060	RC1"	60.0	3.6	127.0	138	111	403	37	296	208
YF070	RC1"	83.3	5.0	177.0	138	111	503	37	396	303
YF080	RC1-1/2"	125.0	7.5	265.0	138	111	503	37	396	303
YF090	RC2"	166.7	10.0	353.1	174	142	736	58	607	469
YF100	RC2-1/2"	216.7	13.0	459.0	174	142	736	58	607	469
YF110	RC2"	283.3	17.0	600.0	174	142	1016	58	887	794
YF120	RC2-1/2"	316.7	19.0	671.0	174	142	1016	58	887	794
YF130	RC3"	416.7	25.0	883.0	220	184	793	74	649	514
YF140	RC4"	466.7	28.0	989.0	220	184	793	74	649	514
YF150	RC3"	683.3	41.0	1448.0	220	184	1050	74	906	764
YF160	RC4"	800.0	48.0	1695.0	220	184	1050	74	906	764
Technical requirements	Maximum operating pressure: 10 barg Operating temperature: 1.5°C~80°C.

Pressure	Barg	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Pressure	Psig	15	29	44	59	73	87	100	116	131	145	160	174	189	203	219	232
Correction factor		0.38	0.53	0.65	0.76	0.85	0.93	1.00	1.07	1.13	1.19	1.23	1.31	1.36	1.41	1.46	1.51

Compressed Air Filter With Floating Drain

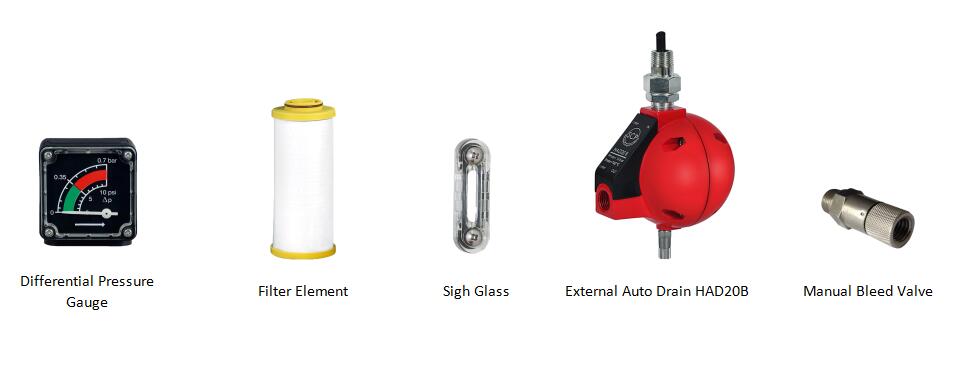

Accessories
